Installation

Ref : Gitea docs

There are some option for you to install for me i love to install from binary and config everything myself

First you have to create your Linux container aka. Lxc or CT (in proxmox) then install gitea

Terminal

$ apt update && apt $ full-upgrade -y
$ apt install net-tools git

# From gitea official doc
$ wget -O gitea https://dl.gitea.com/gitea/1.23.7/gitea-1.23.7-linux-amd64
$ chmod +x gitea

When you create your CT -> proxmox will create a root user for you to ensure security we have to create a dedicated user for gitea service

Create User

$ adduser \
   --system \
   --shell /bin/bash \
   --gecos 'Git Version Control' \
   --group \
   --disabled-password \
   --home /home/git \
   git

Warning

This user create for gitea service only if you want to create some user to use inside this server you shoud considered create a new user

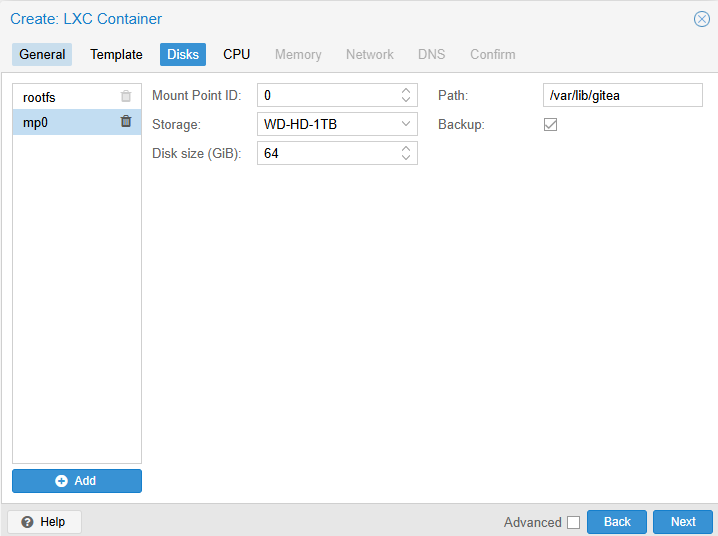

Config mount volume at the start of installation on proxmox

for me
→ root boot drive 8gb mounted at /

→ mp0 mount drive at /var/lib/gitea

So the set up should be like this (in Gitea document also provide these command)

$ mkdir -p /var/lib/gitea/{custom,data,log}
$ chown -R git:git /var/lib/gitea/
$ chmod -R 750 /var/lib/gitea/
$ mkdir /etc/gitea
$ chown root:git /etc/gitea
$ chmod 770 /etc/gitea

There might have some error about lost+found directory in /var/lib/gitea just ignore them. they don't have any impact

Define Gitea workdir then copy gitea binary to the system binary

$ export GITEA_WORK_DIR=/var/lib/gitea/

$ cp gitea /usr/local/bin/gitea

Next i want to config it to run as a systemctl service

do nano /etc/systemd/system/gitea.service

[Unit]
Description=Gitea (Git with a cup of tea)
After=syslog.target
After=network.target

[Service]
# Uncomment the next line if you have repos with lots of files and get a HTTP 500 error because of that
# LimitNOFILE=524288:524288
RestartSec=2s
Type=notify
User=git
Group=git
#The mount point we added to the container
WorkingDirectory=/var/lib/gitea
#Create directory in /run
RuntimeDirectory=gitea
ExecStart=/usr/local/bin/gitea web --config /etc/gitea/app.ini
Restart=always
Environment=USER=git HOME=/var/lib/gitea/data GITEA_WORK_DIR=/var/lib/gitea
WatchdogSec=30s
#Capabilities to bind to low-numbered ports
CapabilityBoundingSet=CAP_NET_BIND_SERVICE
AmbientCapabilities=CAP_NET_BIND_SERVICE

[Install]
WantedBy=multi-user.target

don't be afraid gitea docs also provide this as well you can take a look docs

Then start the service

$ sudo systemctl daemon-reexec
$ sudo systemctl daemon-reload
$ sudo systemctl enable gitea
$ sudo systemctl start gitea

Create a new user to config inside this server

Instead of using root user to do anyhing it a best practice to using another sudoer user instead

# Gitea Server Machine
$ adduser myuser
$ usermod -aG sudo myuser

Preparing for SSH

# Our Machine -> powershell

ssh-keygen -t ed25519 -C "myuser@gitea"
type $env:USERPROFILE\.ssh\myuser_gitea.pub

# Copy the content then paste in the next section

# Gitea Server Machine
$ mkdir -p /home/myuser/.ssh
$ echo '<your output from type $env:USERPROFILE\.ssh\myuser_gitea.pub>' > /home/myuser/.ssh/authorized_keys

# if you use linux try finding cat ~/.ssh/myuser_gitea.pub
$ chown -R myuser:myuser /home/myuser/.ssh
$ chmod 700 /home/myuser/.ssh
$ chmod 600 /home/myuser/.ssh/authorized_keys

Open sudo nano /etc/ssh/sshd_config and setting like this

[...]

Port 2222

#LoginGraceTime 2m
PermitRootLogin no
#StrictModes yes
#MaxAuthTries 6
#MaxSessions 10

PubkeyAuthentication yes
PasswordAuthentication no

[...]

This configuration provide you 2 things
1. No Root Login Accepted
2. Change openssh port to 2222 avoid port conflict with Gitea

then

$ sudo systemctl restart ssh
$ sudo systemctl restart gitea

Bonus section since my laptop are window based

Config ssh knowhost from client side

At C:\Users\<user>\.ssh added this

• Host can be IPv4 address (in my network i have set up DNS server to resolve internal domainname to private IPv4 address)

[...]

Host gitea.local
  HostName gitea.local
  User myuser
  IdentityFile ~/.ssh/myuser_gitea
  IdentitiesOnly yes

[...]

no need to do complicate thing because when you gen ssh-keygen the .pub and other key will be in this folder

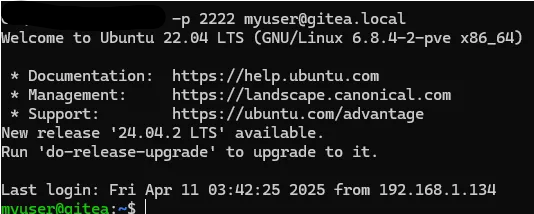

Try Connecting with port 2222

ssh -p 2222 myuser@<your-domain>

That work!! nice!!

Now visiting gitea server domain

192.168.1.100:3000 -> change to your private IPv4 address

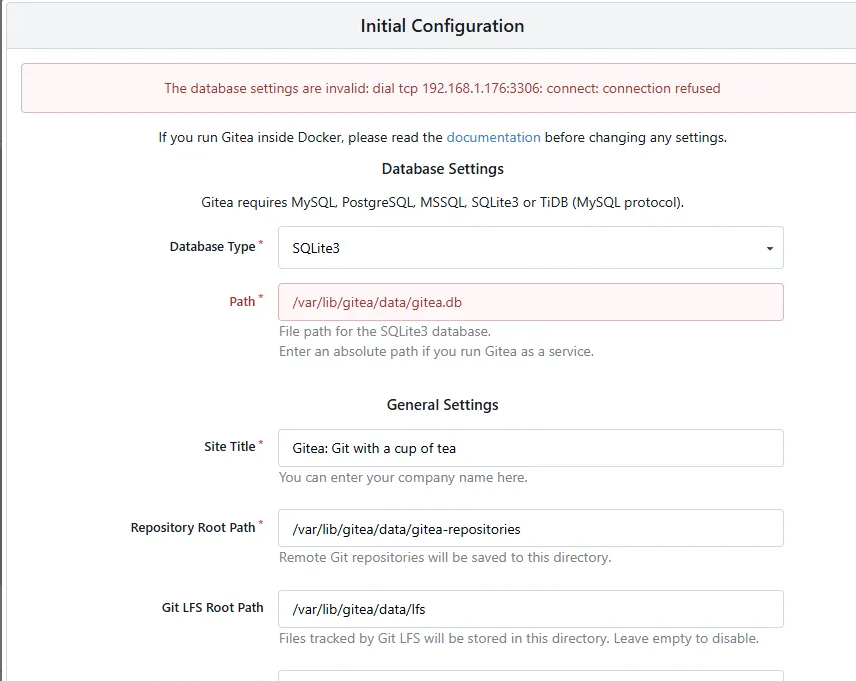

It will pop up configuration -> for beginner i recommend using SQLite3 and also don't forget to create a admin user

if you encounter that terminal stuck at start service -> navigate to http://<ip>:<port> normally i assume you use http:192.168.1.100:3000

After that config the admin user and config

1. SSH_DOMAIN = your.homelabs.local
2. DOMAIN = <IPv4 address>
3. HTTP_PORT = 3000
4. BASE_URL = http://your.homelabs.local/ or http://<IPv4-address>:3000/ -> use you desire domain name but don't forget to add this domain name to route to your gitea server in the future i recommended using SSL through reverse proxy but now you can use this

I think i will change the db in the future

** Now test ssh to a repository **

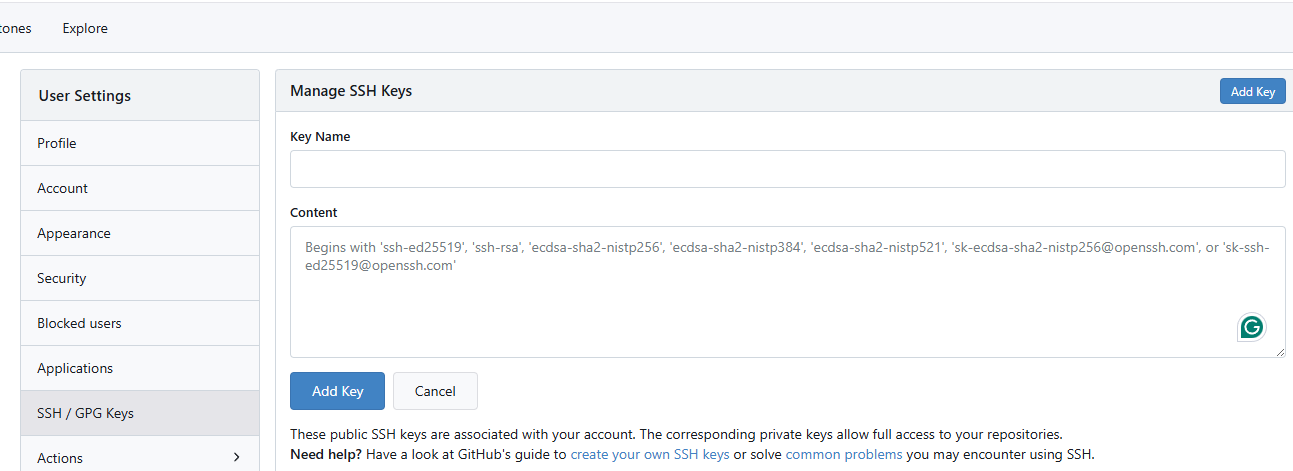

First you have to add your public key to the gitea ssh key / gpg key

# in our machine
ssh-keygen -t ed25519 -C "test@gmail.com"
# save key as gitea_testuser

type $env:USERPROFILE\.ssh\gitea_testuser.pub
#then copy ssh and paste to gitea ssh-key

Next is the Problem , the part that document doesn't mention

I try it myself, i follow the instruction but some how cannot push my code on the repo

and i found that it a port conflict problem and sometime gitea built-in ssh service doesn't start properly

The editted nano /etc/gitea/app.ini

note that we have config the System sshd to use port 2222 as a ssh port

now we need to config sudo nano /etc/gitea/app.ini

add START_SSH_SERVER = true to the server part

[.......]

[database]
DB_TYPE = sqlite3
HOST = 127.0.0.1:3306
NAME = gitea
USER = gitea
PASSWD =
SCHEMA =
SSL_MODE = disable
PATH = /var/lib/gitea/data/gitea.db
LOG_SQL = false

[repository]
ROOT = /var/lib/gitea/data/gitea-repositories

[server]
SSH_DOMAIN = gitea.local
DOMAIN = gitea.local
HTTP_PORT = 80
ROOT_URL = http://gitea.local:80/
APP_DATA_PATH = /var/lib/gitea/data
START_SSH_SERVER = true
DISABLE_SSH = false
SSH_PORT = 22
LFS_START_SERVER = true
LFS_JWT_SECRET = <jwt-secret>

[.......]

don't forget to change to Your domain

then

$ sudo systemctl restart ssh
$ sudo systemctl restart gitea

$ sudo ss -tulnp | grep :22

okay so it may work now

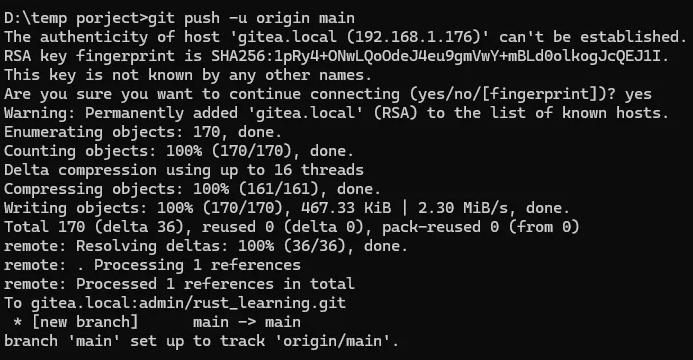

Next try to test push,pull using ssh

just using some random coding folder then following this step

Creating a new repository on the command line

touch README.md
git init
git checkout -b main
git add README.md
git commit -m "first commit"
git remote add origin git@gitea.local:admin/testrepo.git
git push -u origin main

ignore the typo it just a rush typing to test the connection

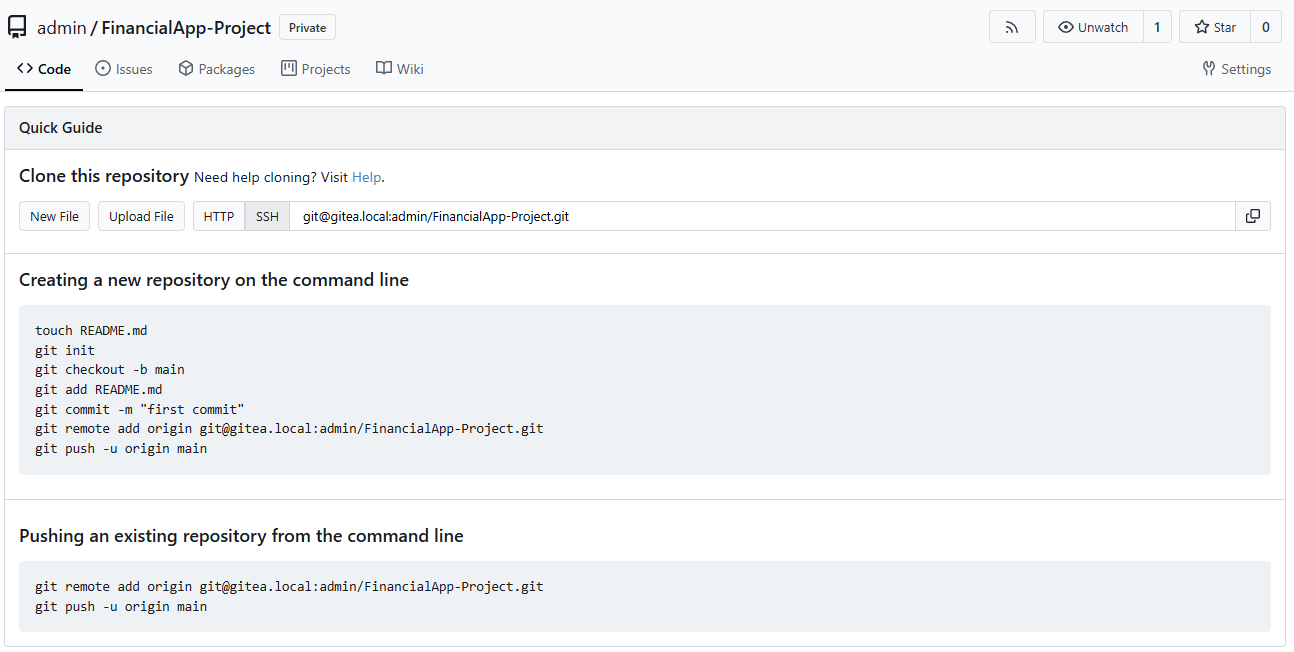

let create a repo from gitea

then git clone to local machine

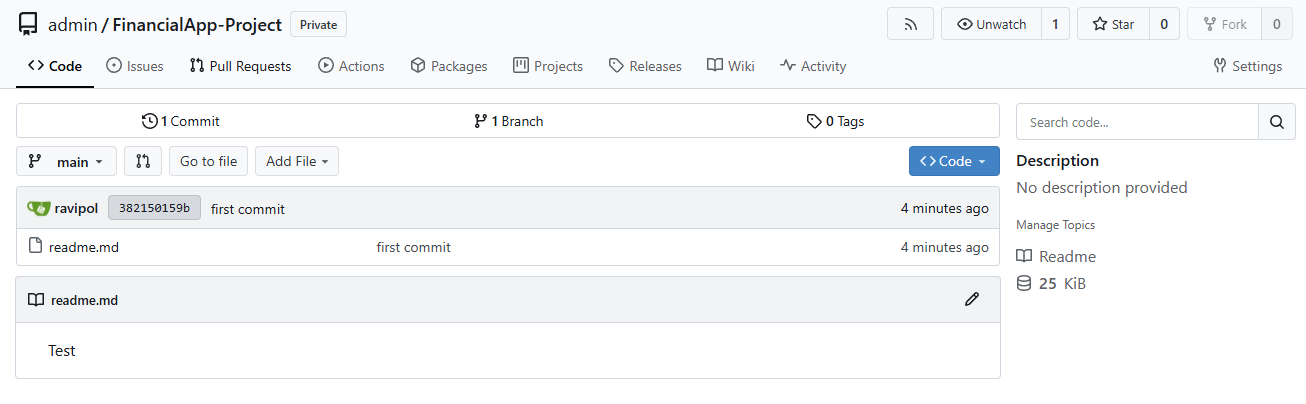

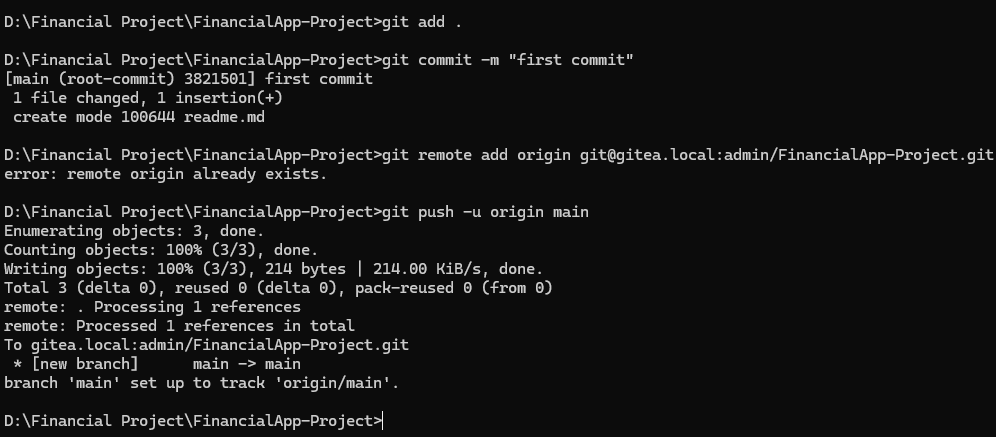

Create Some readme.md then push to gitea

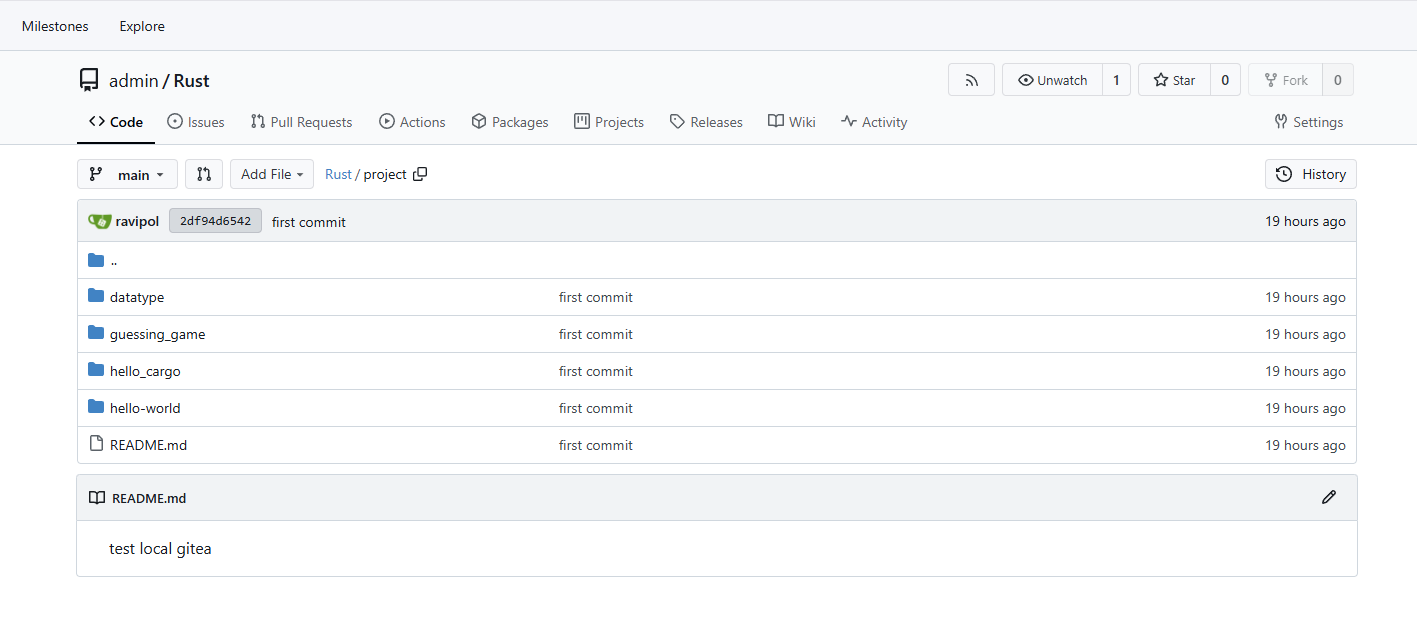

Now we can successfully self-hosted our git

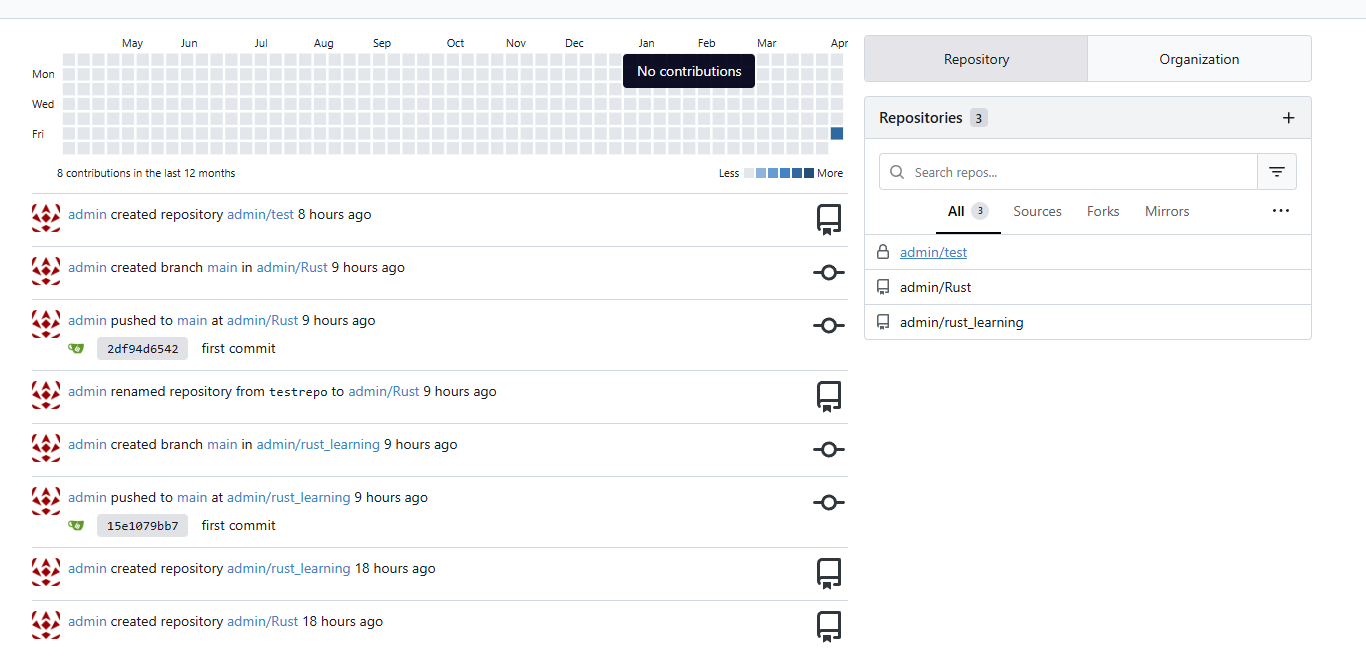

That is all for gitea service you can push your project and anything like this

like github
