Installation

There are some option for you to install for me i love to install from binary and config everything myself

First you have to create your Linux container aka. Lxc or CT (in proxmox) then install gitea

apt update && apt full-upgrade -y
apt install net-tools git

# From gitea official doc
wget -O gitea https://dl.gitea.com/gitea/1.23.7/gitea-1.23.7-linux-amd64
chmod +x gitea

When you create your CT -> proxmox will create a root user for you to ensure security we have to create a dedicated user for gitea service

Create User

adduser \
   --system \
   --shell /bin/bash \
   --gecos 'Git Version Control' \
   --group \
   --disabled-password \
   --home /home/git \
   git

!! This user create for gitea service only if you want to create some user to use inside this server you shoud considered create a new user !!

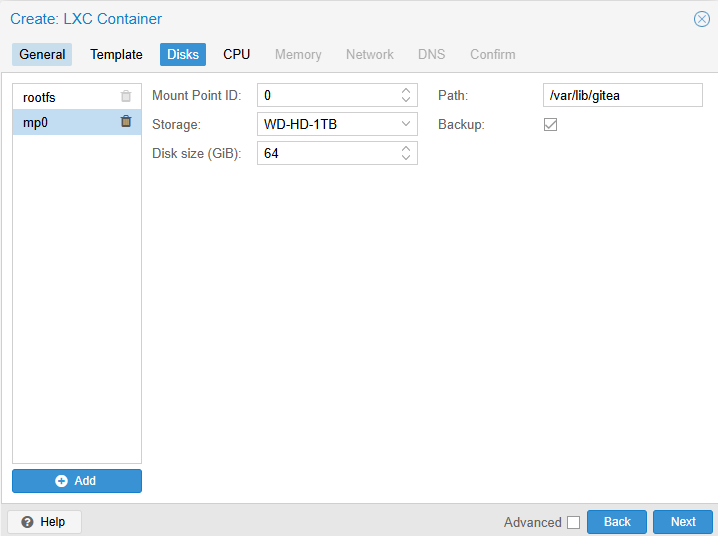

Config mount volume at the start of installation on proxmox

for me → root boot drive 8gb mounted at /

→ mp0 mount drive at /var/lib/gitea

Alt text

So the set up should be like this (in Gitea document also provide these command)

mkdir -p /var/lib/gitea/{custom,data,log}
chown -R git:git /var/lib/gitea/
chmod -R 750 /var/lib/gitea/
mkdir /etc/gitea
chown root:git /etc/gitea
chmod 770 /etc/gitea

There might have some error about lost+found directory in /var/lib/gitea just ignore them. they don't have any impact

Define Gitea workdir then copy gitea binary to the system binary

export GITEA_WORK_DIR=/var/lib/gitea/

cp gitea /usr/local/bin/gitea

Next i want to config it to run as a systemctl service

do nano /etc/systemd/system/gitea.service

[Unit]
Description=Gitea (Git with a cup of tea)
After=syslog.target
After=network.target

[Service]
# Uncomment the next line if you have repos with lots of files and get a HTTP 500 error because of that
# LimitNOFILE=524288:524288
RestartSec=2s
Type=notify
User=git
Group=git
#The mount point we added to the container
WorkingDirectory=/var/lib/gitea
#Create directory in /run
RuntimeDirectory=gitea
ExecStart=/usr/local/bin/gitea web --config /etc/gitea/app.ini
Restart=always
Environment=USER=git HOME=/var/lib/gitea/data GITEA_WORK_DIR=/var/lib/gitea
WatchdogSec=30s
#Capabilities to bind to low-numbered ports
CapabilityBoundingSet=CAP_NET_BIND_SERVICE
AmbientCapabilities=CAP_NET_BIND_SERVICE

[Install]
WantedBy=multi-user.target

don't be afraid gitea docs also provide this as well you can take a look docs

Then start the service

sudo systemctl daemon-reexec
sudo systemctl daemon-reload
sudo systemctl enable gitea
sudo systemctl start gitea

Create a new user to config inside this server

Instead of using root user to do anyhing it a best practice to using another sudoer user instead

# Gitea Server Machine
adduser myuser
usermod -aG sudo myuser

Preparing for SSH

# Our Machine
ssh-keygen -t ed25519 -C "myuser@gitea"
type $env:USERPROFILE\.ssh\myuser_gitea.pub
# Copy the content then paste in the next section

# Gitea Server Machine
mkdir -p /home/myuser/.ssh
echo '<your output from type $env:USERPROFILE\.ssh\myuser_gitea.pub>' > /home/myuser/.ssh/authorized_keys
# if you use linux try finding cat ~/.ssh/myuser_gitea.pub
chown -R myuser:myuser /home/myuser/.ssh
chmod 700 /home/myuser/.ssh
chmod 600 /home/myuser/.ssh/authorized_keys

Open sudo nano /etc/ssh/sshd_config and setting like this

[...]

Port 2222

#LoginGraceTime 2m
PermitRootLogin no
#StrictModes yes
#MaxAuthTries 6
#MaxSessions 10

PubkeyAuthentication yes
PasswordAuthentication no

[...]

This configuration provide you 2 things
1. No Root Login Accepted
2. Change openssh port to 2222 avoid port conflict with Gitea

then

sudo systemctl restart ssh
sudo systemctl restart gitea

Bonus section since my laptop are window based

Config ssh knowhost from client side

At C:\Users\<user>\.ssh added this

Host can be IPv4 address (in my network i have set up DNS server to resolve internal domainname to private IPv4 address)

[...]

Host gitea.local
  HostName gitea.local
  User myuser
  IdentityFile ~/.ssh/myuser_gitea
  IdentitiesOnly yes

[...]

no need to do complicate thing because when you gen ssh-keygen the .pub and other key will be in this folder

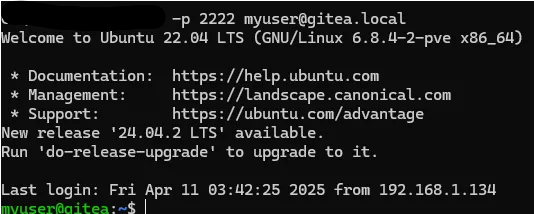

Try Connecting with port 2222

ssh -p 2222 myuser@<your-domain>

Alt text

That work!! nice!!

Now visiting gitea server domain

192.168.1.176:3000 -> change to your private IPv4 address

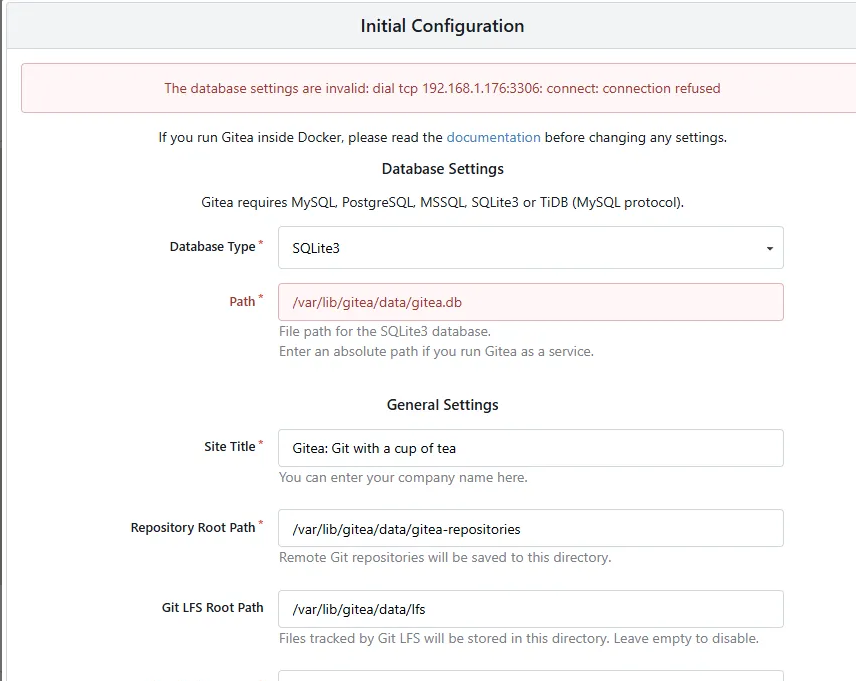

It will pop up configuration -> for beginner i recommend using SQLite3 and also don't forget to create a admin user

Alt text

I think i will change the db in the future

Now test ssh to a repository

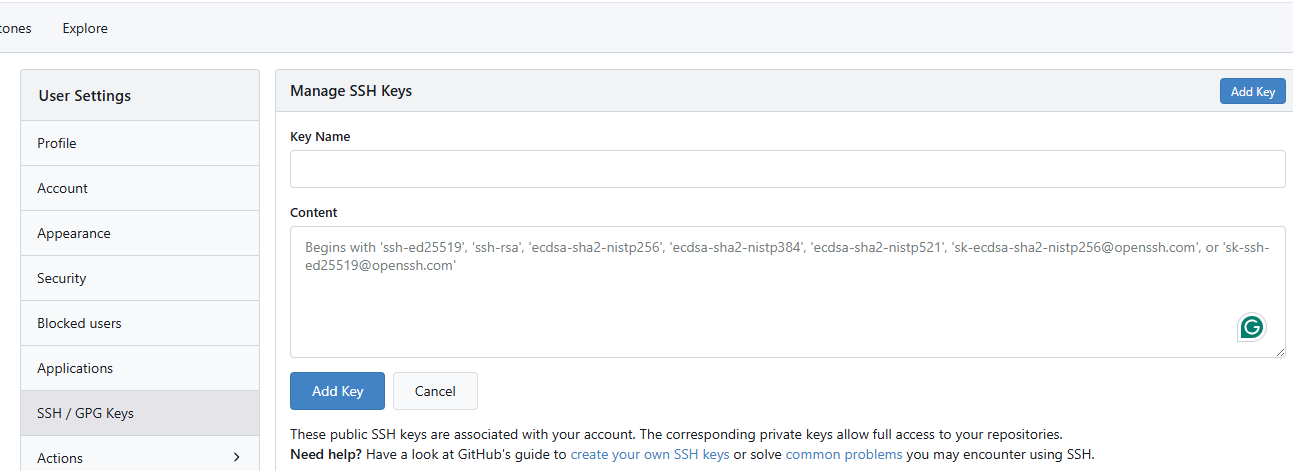

First you have to add your public key to the gitea ssh key / gpg key

# in our machine
ssh-keygen -t ed25519 -C "test@gmail.com"
# save key as gitea_testuser

type $env:USERPROFILE\.ssh\gitea_testuser.pub
#then copy ssh and paste to gitea ssh-key

Alt text

Next is the Problem , the part that document doesn't mention

I try it myself, i follow the instruction but some how cannot push my code on the repo

and i found that it a port conflict problem and sometime gitea built-in ssh service doesn't start properly

The editted nano /etc/gitea/app.ini

note that we have config the System sshd to use port 2222 as a ssh port

now we need to config sudo nano /etc/gitea/app.ini

add START_SSH_SERVER = true to the server part

[.......]

[database]
DB_TYPE = sqlite3
HOST = 127.0.0.1:3306
NAME = gitea
USER = gitea
PASSWD =
SCHEMA =
SSL_MODE = disable
PATH = /var/lib/gitea/data/gitea.db
LOG_SQL = false

[repository]
ROOT = /var/lib/gitea/data/gitea-repositories

[server]
SSH_DOMAIN = gitea.local
DOMAIN = gitea.local
HTTP_PORT = 80
ROOT_URL = http://gitea.local:80/
APP_DATA_PATH = /var/lib/gitea/data
START_SSH_SERVER = true
DISABLE_SSH = false
SSH_PORT = 22
LFS_START_SERVER = true
LFS_JWT_SECRET = <jwt-secret>

[.......]

don't forget to change to Your domain

then

sudo systemctl restart ssh
sudo systemctl restart gitea

sudo ss -tulnp | grep :22

Alt text

okay so it may work now

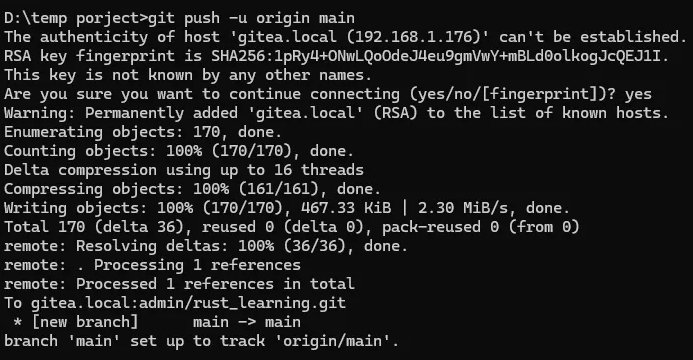

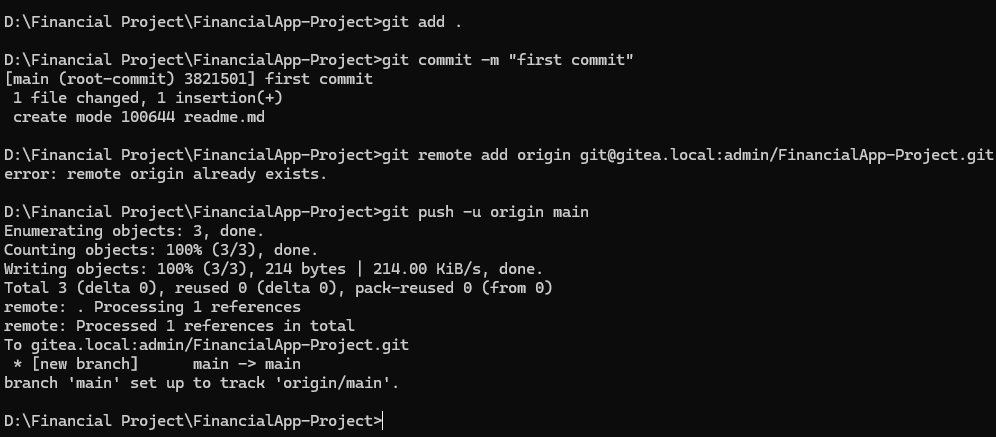

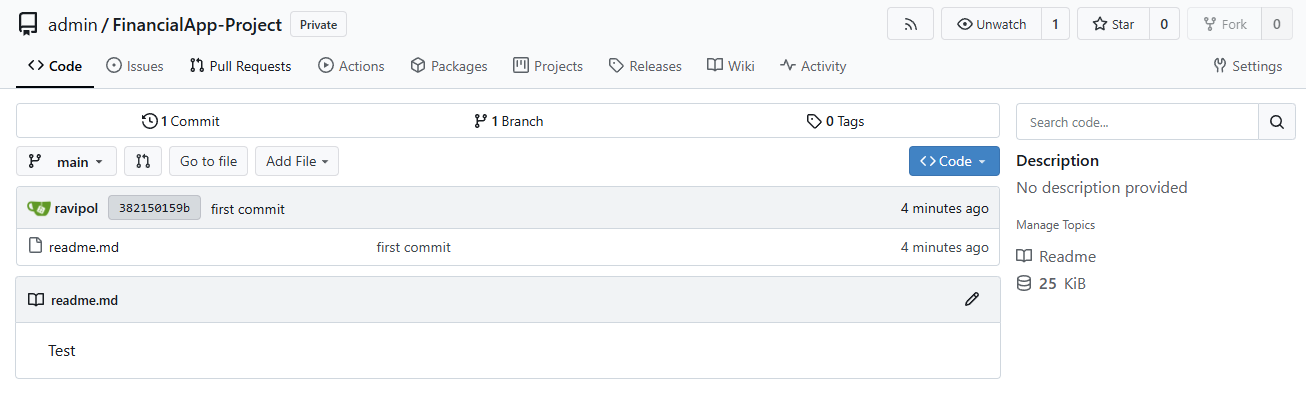

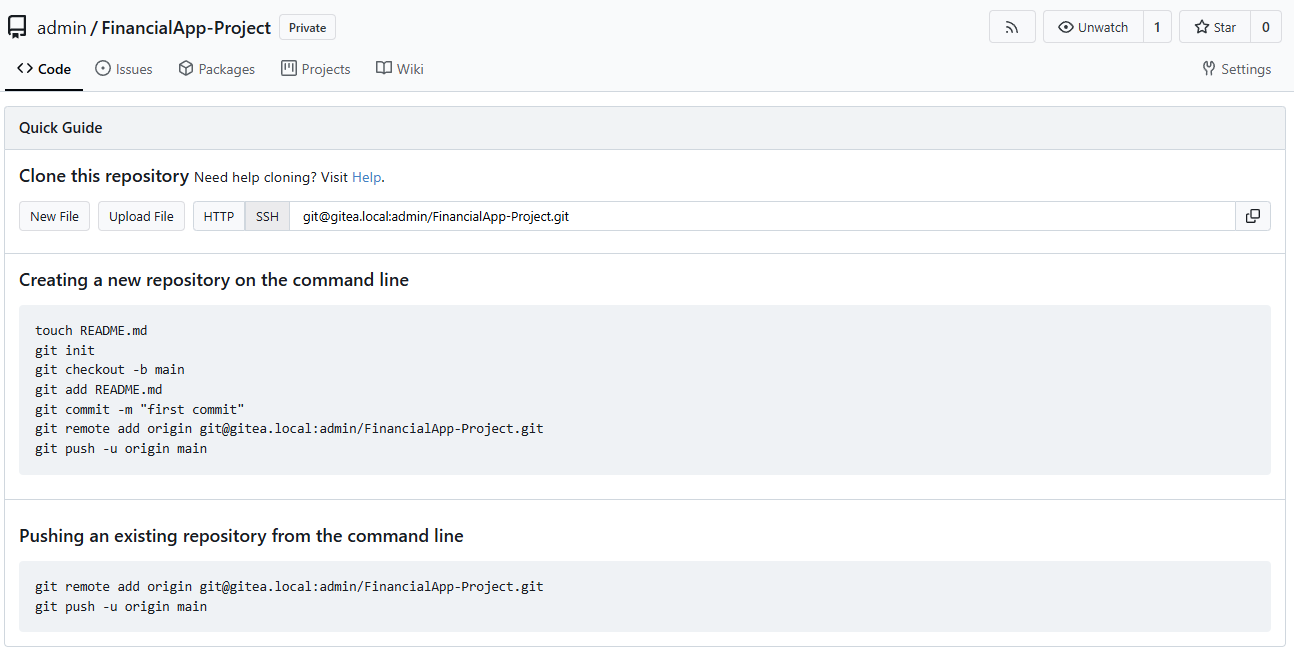

Next try to test push,pull using ssh

just using some random coding folder then following this step

Creating a new repository on the command line

touch README.md
git init
git checkout -b main
git add README.md
git commit -m "first commit"
git remote add origin git@gitea.local:admin/testrepo.git
git push -u origin main
